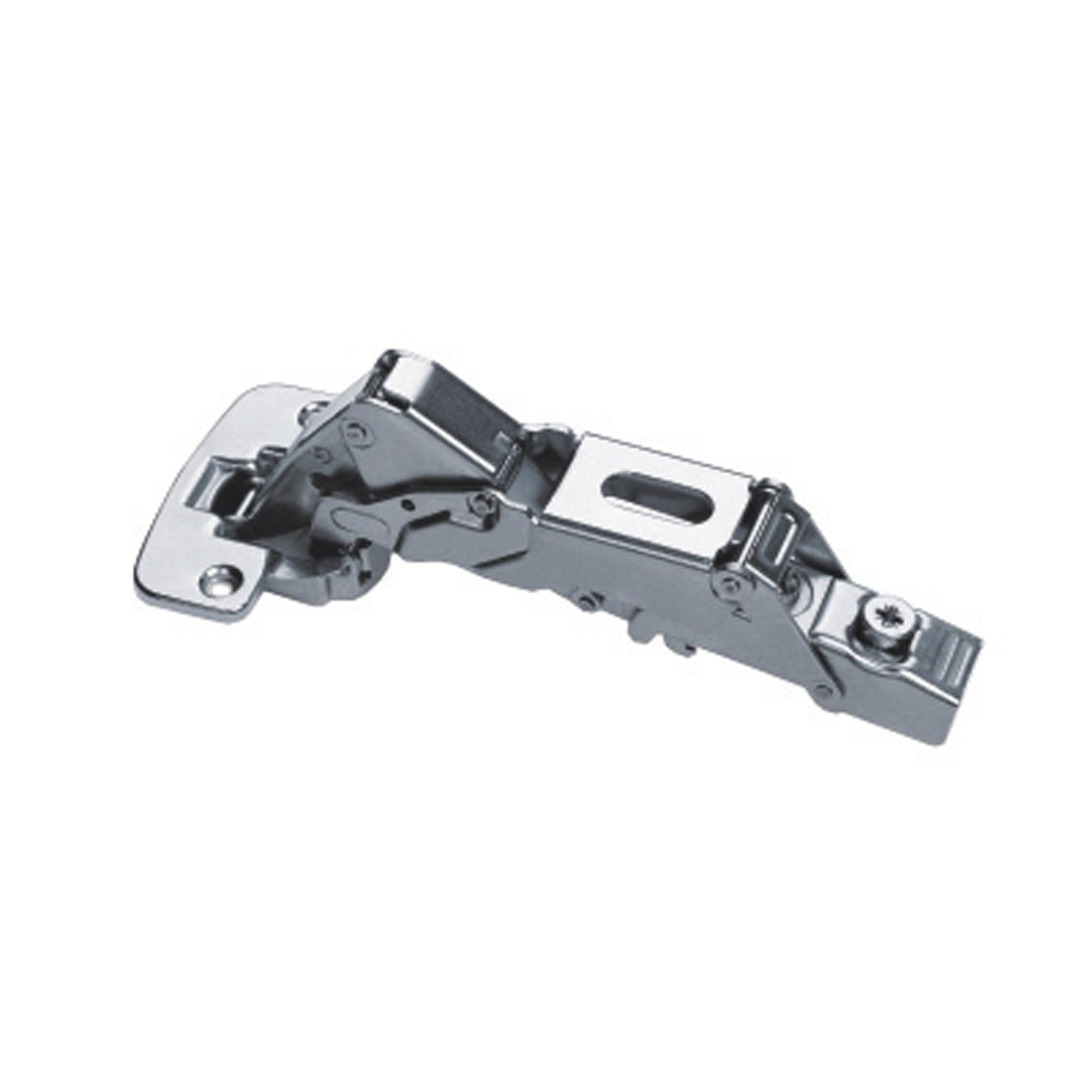

Slyder Clip On Hinge 170/0 (SC Mplate)
SKU
E511-737
SKU
E511-737
Compatible Mounting Plates: E552-790 - E552-794, E552-780, E552-690 - E552-694 and E552-770 - E552-779
Depth of hinge cup: 11.5mm
Range of door thickness: 16 - 24mm
Possible drilling distances on the door: 3 - 6mm
Lifetime Guarantee
Fira Level H Tested to over 100,000 cycles
Cam Adjustable
Depth of hinge cup: 11.5mm
Range of door thickness: 16 - 24mm
Possible drilling distances on the door: 3 - 6mm
Lifetime Guarantee
Fira Level H Tested to over 100,000 cycles
Cam Adjustable
Opening Angle | 155.0000 |
---|---|
Cup Diameter | 35mm |
Function | Non Soft Close, Zero Protrusion |
